Sewing Machine Parts Name With Picture For Easy Identification

Introduction of Sewing Machine Parts Name

The sewing machine parts name is essential for anyone looking to master the art of sewing. Whether you’re a beginner or an experienced seamstress, knowing the names and functions of these components can help you troubleshoot issues, make adjustments, and unleash your creativity with confidence. As a garment or manufacturing employer, it is important to understand the names and functions of sewing machine parts name. This knowledge is crucial for proper garment production.

The objective of Sewing Machine Parts Name

• Learn about Sewing Machine parts name
• Learn about sewing machine parts name with function
• Learn about machine tools name
• Learn about tools function

Sewing Machine Parts Name

• Needle
• Pressure foot
• Feed dog
• Bobbin
• Bobbin Case
• looper
• Wheel
• Disk tensioner
• Bobbin winder
• Take off lever

Needle Function

• To produce hole in the material
• To carry the needle thread through the material and form a loop
• To pass the needle thread
• Through the loop

Needle Clamp

• Holds needle in position.

Slide Plate

• A rectangular plate, which facilitates the removal of the bobbin case without lifting the machine.

Pressure Foot

• Holds fabric in place.
• It is fixed to the presser bar to hold the cloth firmly in position when lowered.

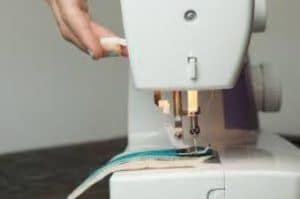

Presser Foot Lifter

• A lever is attached to the presser bar for raising and lowering the presser foot.

Feed dog

• Moves fabric under the presser foot as stitches are formed.
• This consists of a set of teeth fitted below the needle plate. It helps to move the cloth forward while sewing.

Bobbin

• The round metal spool holds the bottom thread in place.

Bobbin Case

• Holds bobbin and regulates bottom thread tension as stitches are formed. This moves into position to catch
• the top thread and form the stitch as the needle is lowered into the bobbin chamber.

Bobbin Winder

• Allows you to fill a bobbin automatically
• A simple mechanism is used for winding thread on the bobbin.

Looper

• Take the thread from the needle and pull it through the fabric to form a loop

Hand Wheel

• Controls up and down motion of the thread take-up lever, thread, and needle.

Thread Take-up lever

• Controls the thread as it flows through the needle.
• It is a lever fitted to the body of the arm. Its up-and-down motion feeds the thread to the needle and tightens the loop formed by the shuttle.

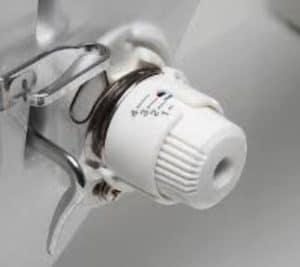

Tensioner

• The two concave discs are put together with the convex sides facing each other.
• The thread passes between the two.
• The tension of the thread is adjusted by a spring and nut which increases or decreases the pressure

Reverse Lever

• The reverse lever allows you to stitch in reverse. We use reverse to make our stitches secure at the beginning and end of seams.

Machine Guide or Tools

• Folder
• Guide
• Roller
• Auto Releaser
• Template pattern

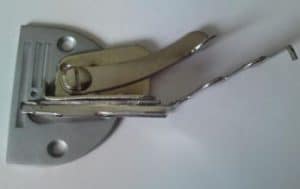

Plain machine Folder

• Easy to handle
• Critical jobs become easy
• More accuracy

2N plain machine folder

Overlock folder

Flatlock Folder

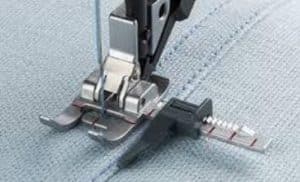

Guide

• Used for uniform distance
• Used for sewing accuracy

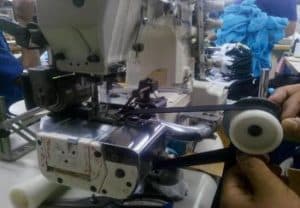

Roller

• Ensure required extension
• Ensure uniformity
• Easy to handle

Kansai Roller Machine

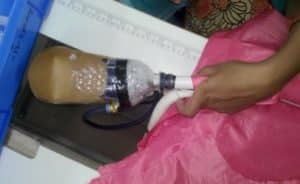

Air Gun

• Insert Cotton to certain Area

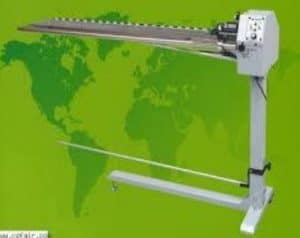

Piping cutting machine

Heat press machine

Scissor

Thread trimmer

• Extra thread trimming
• Extra raw edge trimming

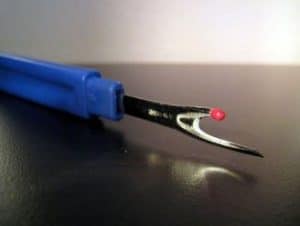

Stitch Opener

• Opening stitch by sharp edge Less chance of damaged fabric

Auto releaser

• To release by Uniform tension
• Button mould

Conclusion

The sewing machine parts name is crucial for every manufacturing employer on their journey. Don’t underestimate the importance of this fundamental knowledge. Don’t underestimate the importance of this fundamental knowledge. Familiarizing yourself with the names and functions of sewing machine parts is essential for anyone passionate about sewing. Whether you’re a beginner or an experienced seamstress, knowing how each component works and how to maintain them ensures a smooth and enjoyable sewing experience.
